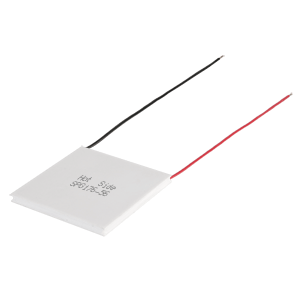

SPG176-56
56 x 56 x 4.5 mm, 17.6 W Output, Wire Leads, Thermoelectric Generator (TEG)
Product Category
Thermal Management
Product Sub category
Peltiers
PRODUCT DETAILS
Product Description
56 x 56 x 4.5 mm, 17.6 W Output, Wire Leads, Thermoelectric Generator (TEG)
Product Tags
Technical Specifications
| Ac resistance (@27 °c /1000 hz) (ohms) | 2.2~3.0 |
|---|---|
| Dimensions lxwxh (in) | 2.21 x 2.21 x 0.18 |
| Dimensions lxwxh (mm) | 56 x 56 x 4.5 |
| Heat flow across module (w) | 301 |
| Heat flow density (w/cm²) | 9.6 |
| Height (mm) | 4.5 |
| Length (mm) | 56 |
| Matched load output current (a) | 2 |
| Matched load output power (w) | 17.6 |
| Matched load output voltage (v) | 8.8 |
| Matched load resistance (ohms) | 4.4 |
| Open circuit voltage (vdc) | 17.7 |
| Width (mm) | 56 |
