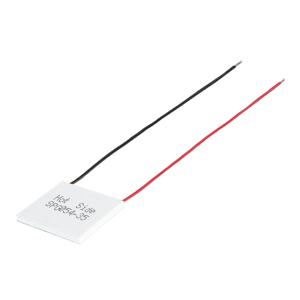

SPG054-35
35 x 35 x 3.88 mm, 5.4 W Output, Wire Leads, Thermoelectric Generator (TEG)
Product Category
Thermal Management
Product Sub category
Peltiers
PRODUCT DETAILS
Product Description
35 x 35 x 3.88 mm, 5.4 W Output, Wire Leads, Thermoelectric Generator (TEG)
Product Tags
Technical Specifications
| Ac resistance (@27 °c /1000 hz) (ohms) | 2.8~4.0 |
|---|---|
| Dimensions lxwxh (in) | 1.38 x 1.38 x 0.15 |
| Dimensions lxwxh (mm) | 35 x 35 x 3.88 |
| Heat flow across module (w) | 94.7 |
| Heat flow density (w/cm²) | 7.7 |
| Height (mm) | 3.88 |
| Length (mm) | 35 |
| Matched load output current (a) | 1 |
| Matched load output power (w) | 5.4 |
| Matched load output voltage (v) | 5.4 |
| Matched load resistance (ohms) | 5.4 |
| Open circuit voltage (vdc) | 10.8 |
| Width (mm) | 35 |
