XFP-10GBX-D-10-C

XFP-10GBX-D-10-C

XFP-10GBX-D-10-C

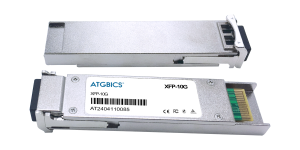

10GBase-BX XFP Transceiver, 1270nm DFB TX / 1330nm RX, 10km Reach

Brand
Product Category
Fibre Optic Transceivers

PRODUCT DETAILS

Product Description

The Approved Technology XFP-10GBX-D-10-C is a 10GBase-BX XFP transceiver module engineered for high-speed data communication over single-mode fiber optic cables. This transceiver utilizes a 1270nm DFB laser for transmission (TX) and a 1330nm receiver (RX), enabling bidirectional data transfer on a single fiber strand. With a reach of up to 10 kilometers, it is suitable for a wide range of applications, including data centers, enterprise networks, and telecommunications infrastructure. The XFP-10GBX-D-10-C transceiver is compliant with industry standards, ensuring seamless integration with compatible networking equipment. Supreme Components International is an authorised distributor of Approved Technology, guaranteeing genuine products and reliable performance. This XFP module offers a cost-effective solution for upgrading network capacity and improving overall network performance.

Product Tags

Technical Specifications

Reach 10 kilometers
Voltage 3.3 Volts
Data rate 10 Gigabits per second
Fiber type Single Mode Fiber
Wavelength 1270 nanometers Transmit / 1330 nanometers Receive
Connector type LC
Transmit power Negative 3 to 2 dBm
Receive sensitivity Negative 14 dBm
Operating temperature 0 to 70 degrees Celsius
Ships in: 1 day
