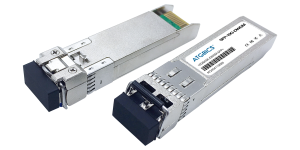

XCVR-S80W20-T-C
SFP+ transceiver, 80km, 10G, 1550nm, SMF, with DDM
Brand
Product Category
Fibre Optic Transceivers
PRODUCT DETAILS
Product Description
Supreme Components International is an authorised distributor of Approved Technology, offering the XCVR-S80W20-T-C SFP+ optical transceiver. This transceiver is engineered for high-speed 10 Gigabit Ethernet data transmission over single-mode fiber (SMF). Operating at a wavelength of 1550nm, it enables reliable data transfer over distances up to 80km. The XCVR-S80W20-T-C incorporates Digital Diagnostic Monitoring (DDM) functionality, allowing users to monitor critical parameters such as optical power, temperature, and voltage in real-time. This feature facilitates proactive maintenance and troubleshooting, ensuring optimal network performance. Ideal for long-haul communication links and demanding network environments.
Product Tags
Technical Specifications
| Data rate | 10 Gigabits per second |
|---|---|
| Fiber type | Single Mode Fiber |
| Wavelength | 1550 nanometers |
| Maximum reach | 80 kilometers |
| Connector type | LC |
| Transmit power | 0 to 4 dBm |
| Power consumption | Less than 1.5 Watts |
| Receive sensitivity | Less than -23 dBm |
| Operating temperature | 0 to 70 degrees Celsius |
| Digital diagnostics monitoring | Yes |
