UP32-C-V-G-TH-P24-TR

UP32-C-V-G-TH-P24-TR

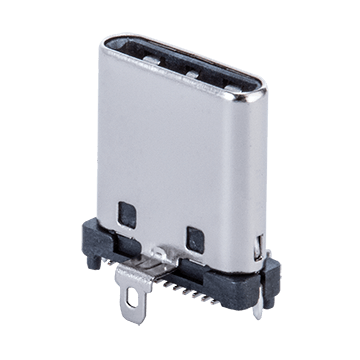

USB 3.2 Type C Connector, Vertical, Gold Flash, Through Hole, 24 Pins, Tape and Reel

Supreme Components International, an authorised distributor of electronic components, presents the UP32-C-V-G-TH-P24-TR USB 3.2 Type C connector from SAME SKY. This connector is designed for vertical mounting and utilizes through-hole technology for secure PCB attachment. The gold flash plating ensures excellent conductivity and corrosion resistance. With 24 pins, this connector supports high-speed data transfer according to the USB 3.2 specification. It is supplied on tape and reel, making it suitable for automated pick-and-place assembly processes. This robust and reliable connector is ideal for a wide range of applications, including consumer electronics, industrial equipment, and communication devices. Choose Supreme Components International for genuine SAME SKY components and expert support.

Product Categories

Interconnect USB Connectors

Specifications

Parameter Value
Shielding Yes
Durability 10000 Mating Cycles
Orientation Vertical
Product Type USB Type-C
Housing Color Black
Mounting Type Through Hole
Current Rating 5 Amperes
Number Of Pins 24
Shell Material Stainless Steel
Voltage Rating 20 Volts
Contact Material Copper Alloy
Insulator Material High Temperature Thermoplastic UL94V-0
Plating Contact Area Gold Flash
Operating Temperature -40 Degrees Celsius to +85 Degrees Celsius

Ordering Information

Parameter Value
Mpq 1500
Packaging Type TAPE_AND_REEL
