UP32-C-V-G-TH-1-P24-TR

UP32-C-V-G-TH-1-P24-TR

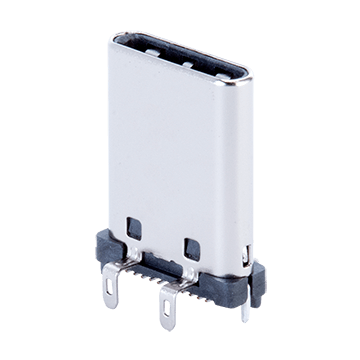

USB 3.2 Type C Connector, Vertical, Through Hole, 24 Pins, Tape and Reel

The UP32-C-V-G-TH-1-P24-TR is a high-performance USB 3.2 Type-C connector from SAME SKY. Supreme Components International is an authorised distributor, guaranteeing genuine components. This connector features a vertical orientation and through-hole mounting for secure and stable integration into your PCB. With 24 pins, it supports USB 3.2 Gen 1 and Gen 2 specifications, enabling data transfer rates up to 10 Gbps. The tape and reel packaging facilitates efficient automated assembly processes. This connector is suitable for a wide range of applications, including smartphones, laptops, tablets, and other portable devices. Its robust design ensures reliable performance and long-term durability. Choose this connector for seamless integration and superior connectivity in your next project.

Product Categories

Interconnect USB Connectors

Specifications

Parameter Value
Gender Receptacle
Durability 10000 Cycles
Usbversion USB 3.2
Producttype USB Type-C
Housingcolor Black
Mountingtype Through Hole
Numberofpins 24
Shellplating Nickel
Numberofports 1
Shellmaterial Stainless Steel
Contactplating Gold
Contactmaterial Copper Alloy
Housingmaterial High Temperature Thermoplastic
Mountingorientation Vertical
Operatingtemperature -40 to +85 Degrees Celsius

Ordering Information

Parameter Value
Mpq 1500
Packaging Type TAPE_AND_REEL

Datasheet

Download Datasheet
