UJ32-C-V-G-TH-2-P24-TR

UJ32-C-V-G-TH-2-P24-TR

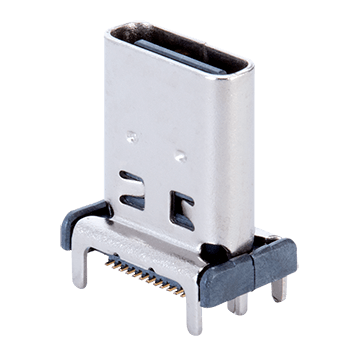

USB 3.2 Type C Connector, Vertical, Gold Flash, Through Hole, 24 Pins, Tape and Reel

The UJ32-C-V-G-TH-2-P24-TR is a high-performance USB 3.2 Type C connector from SAME SKY. Supreme Components International is an authorised distributor of SAME SKY components. This connector is designed for vertical mounting and utilizes through-hole technology for secure PCB attachment. The gold flash plating ensures excellent conductivity and corrosion resistance. With 24 pins, it supports the full functionality of USB 3.2, enabling fast data transfer speeds. The tape and reel packaging facilitates efficient pick-and-place assembly in high-volume manufacturing environments. This connector is suitable for a wide range of applications, including consumer electronics, industrial equipment, and communication devices, where a reliable and high-speed USB connection is required.

Product Categories

Interconnect USB Connectors

Specifications

Parameter Value
Shielding Yes
Durability 10000 Cycles
Halogen Free Yes
Product Type USB Type-C
Current Rating 5 Amperes
Rohs Compliant Yes
Shell Material Stainless Steel
Voltage Rating 20 Volts
Reach Compliant Yes
Contact Material Copper Alloy
Housing Material High Temperature Thermoplastic UL94V-0
Number Of Positions 24
Solder Area Plating Tin
Contact Area Plating Gold Flash
Mounting Orientation Vertical
Operating Temperature -25 to +85 Degrees Celsius

Ordering Information

Parameter Value
Mpq 1500
Packaging Type TAPE_AND_REEL

Datasheet

Download Datasheet
