UJ32-C-H-G-SMT-7-P24-TR

UJ32-C-H-G-SMT-7-P24-TR

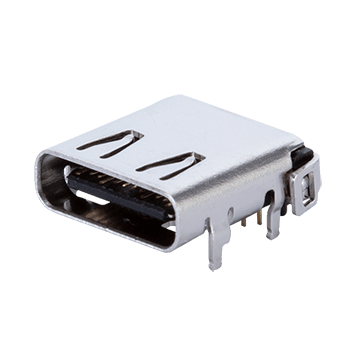

USB 3.2 Type C Connector, Horizontal, SMT, 24 Pins

The UJ32-C-H-G-SMT-7-P24-TR is a high-performance USB 3.2 Type C connector manufactured by SAME SKY (formerly CUI Devices). This connector is designed for horizontal, surface-mount (SMT) installation, making it suitable for automated assembly processes. Featuring 24 pins, it supports USB 3.2 Gen 1 data transfer rates, enabling fast and efficient data transmission. The tape and reel packaging ensures easy handling and placement during manufacturing. Supreme Components International is an authorised distributor of SAME SKY products, guaranteeing the authenticity and quality of this USB Type-C connector. This connector is ideal for a wide range of applications, including laptops, smartphones, tablets, and other electronic devices requiring a robust and reliable USB Type-C connection.

Product Categories

Interconnect USB Connectors

Specifications

Parameter Value
Product USB Type C Connectors
Shielding Yes
Durability 10000 Cycles
Orientation Horizontal
Usb Version USB 3.2
Mounting Type Surface Mount Technology
Current Rating 3 Amperes
Number Of Pins 24
Voltage Rating 30 Volts DC
Contact Plating Gold
Contact Material Copper Alloy
Housing Material Thermoplastic

Ordering Information

Parameter Value
Mpq 1000
Packaging Type TAPE_AND_REEL

Datasheet

Download Datasheet
