UJ32-C-H-G-SMT-5-P24-TR

UJ32-C-H-G-SMT-5-P24-TR

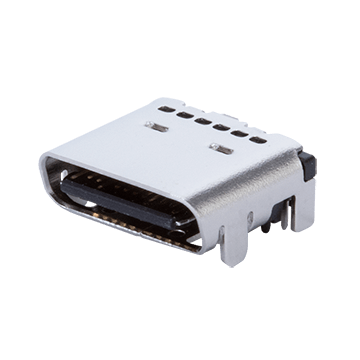

USB 3.2 Type C Connector, Horizontal, SMT, 24 Pins

The UJ32-C-H-G-SMT-5-P24-TR is a high-performance USB 3.2 Type C connector from SAME SKY, designed for modern electronic devices. This connector features a horizontal orientation and is designed for surface-mount technology (SMT) assembly, ensuring efficient and reliable integration into your PCB. With 24 pins, it supports the full functionality of USB 3.2, enabling high-speed data transfer and power delivery. Packaged in tape and reel, it's optimized for automated assembly processes. Supreme Components International is an authorised distributor of SAME SKY products, guaranteeing the authenticity and quality of this USB connector. This component is suitable for a wide range of applications, including smartphones, laptops, tablets, and other consumer electronics.

Product Categories

Interconnect USB Connectors

Specifications

Parameter Value
Plating Gold Plated Contacts
Durability 10000 Cycles
Usbversion USB 3.2
Orientation Horizontal
Producttype USB Type C
Mountingtype Surface Mount Technology
Numberofpins 24
Shellmaterial Stainless Steel
Contactmaterial Copper Alloy
Housingmaterial High Temperature Thermoplastic
Operatingtemperature -25 Degrees Celsius to +85 Degrees Celsius

Ordering Information

Parameter Value
Packaging Type TAPE_AND_REEL

Datasheet

Download Datasheet
