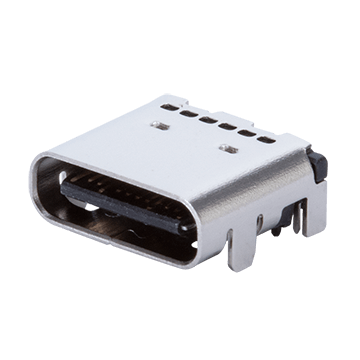

UJ32-C-H-G-SMT-1-P24-TR

SAME SKY (formerly CUI Devices) Logo
Manufacturer Part Number (MPN) UJ32-C-H-G-SMT-1-P24-TR
Manufacturer SAME SKY (formerly CUI Devices)
Short Description USB 3.2 Type C Connector, Horizontal, SMT, 24 Pins
Datasheet 📄 Datasheet

Supreme Components is an authorized distributor of SAME SKY (formerly CUI Devices). We do not carry stock of this item but can quote upon request. Submit your request using the form.

Product Attributes

TYPE
DESCRIPTION
Durability
10000 Cycles
Orientation
Horizontal
Usb Version
USB 3.2
Product Type
USB Type-C
Mounting Type
Surface Mount Technology
Shell Plating
Nickel Plated
Current Rating
3 Amperes
Number Of Pins
24
Shell Material
Stainless Steel
Voltage Rating
30 Volts
Contact Material
Copper Alloy
Housing Material
High Temperature Thermoplastic UL94V-0
Contact Resistance
40 Milliohms Maximum
Contact Area Plating
Gold Plated
Insulator Resistance
100 Megaohms Minimum
Operating Temperature
-25 Degrees Celsius to +85 Degrees Celsius
Dielectric Withstanding Voltage
100 Volts Alternating Current

Ordering Information

Parameter
Value
Mpq
1500
Packaging Type
TAPE_AND_REEL

Full Description

The UJ32-C-H-G-SMT-1-P24-TR is a high-performance USB 3.2 Type C connector from SAME SKY, available at Supreme Components International, an authorised distributor. This connector features a horizontal orientation and is designed for surface-mount technology (SMT) assembly, making it suitable for automated manufacturing processes. With 24 pins, it supports USB 3.2 Gen 1 specifications, enabling data transfer rates up to 5 Gbps. The tape and reel packaging ensures easy handling and placement during PCB assembly. This USB Type C connector is ideal for a wide range of applications, including smartphones, tablets, laptops, and other portable devices. Its robust design and reliable performance make it a dependable choice for demanding applications. Supreme Components International guarantees the authenticity and quality of this SAME SKY product.
