UJ32-C-H-G-MSMT-P24-TR

UJ32-C-H-G-MSMT-P24-TR

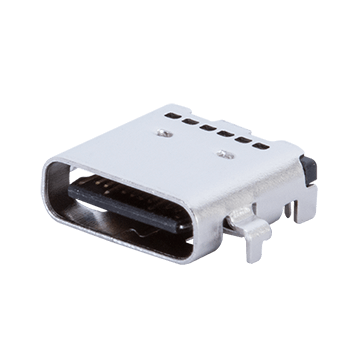

USB 3.2 Type C Connector, Horizontal, Mid-Mount, SMT, 24 Pins

The UJ32-C-H-G-MSMT-P24-TR is a high-quality USB 3.2 Type C connector from SAME SKY (formerly CUI Devices). As an authorized distributor, Supreme Components International guarantees the authenticity and performance of this component. This connector features a horizontal orientation and a mid-mount design, optimized for surface mount technology (SMT) processes. Its 24 pins provide robust connectivity for data transfer and power delivery. Packaged on tape and reel, this connector is well-suited for automated assembly lines, ensuring efficient and precise placement. The USB 3.2 Type C interface supports high-speed data transmission, making it suitable for a wide range of applications. This connector is a reliable choice for your design needs.

Product Categories

Interconnect USB Connectors

Specifications

Parameter Value
Product USB Type C Connectors
Shielding Yes
Durability 10000 Mating Cycles
Orientation Horizontal
Usb Version USB 3.2 Generation 2
Mounting Type Surface Mount Technology
Current Rating 5 Amperes
Shell Material Stainless Steel
Voltage Rating 20 Volts DC
Number Of Ports 1
Contact Material Copper Alloy
Housing Material High Temperature Thermoplastic (UL94V-0 Rated)
Number Of Contacts 24
Operating Temperature -25 to +85 Degrees Celsius

Ordering Information

Parameter Value
Mpq 1500
Packaging Type TAPE_AND_REEL

Datasheet

Download Datasheet
