UJ32-C-H-G-MSMT-3-P24-TR

UJ32-C-H-G-MSMT-3-P24-TR

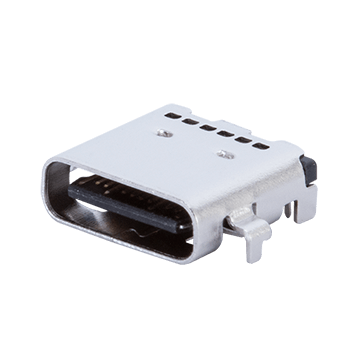

USB 3.2 Type C Connector, Horizontal, Mid-Mount, SMT, 24 Pins

The UJ32-C-H-G-MSMT-3-P24-TR is a high-performance USB 3.2 Type C connector from SAME SKY. Supreme Components International, an authorised distributor, provides this connector designed for horizontal, mid-mount placement on PCBs. Its SMT compatibility ensures efficient assembly processes. This connector boasts 24 pins, supporting robust data transfer and power delivery capabilities. The tape and reel packaging facilitates automated pick-and-place operations, streamlining manufacturing. This USB Type C connector is suitable for a wide range of applications, including smartphones, laptops, and other portable devices requiring reliable connectivity. Benefit from SAME SKY's quality and SCI's reliable distribution.

Product Categories

Interconnect USB Connectors

Specifications

Parameter Value
Product USB Type C Connectors
Shielding Yes
Durability 10000 Cycles
Usbversion USB 3.2 Gen 2
Orientation Horizontal
Mountingstyle Surface Mount Technology
Numberofports 1 Port
Shellmaterial Stainless Steel
Voltagerating 20 Volts DC
Bodyorientation Right Angle
Contactmaterial Copper Alloy
Housingmaterial High Temperature Thermoplastic
Numberofcontacts 24 Contacts
Flammabilityrating UL94V-0
Maximumcurrentrating 5 Amperes
Operatingtemperature -25 to +85 Degrees Celsius

Ordering Information

Parameter Value
Mpq 1000
Packaging Type TAPE_AND_REEL

Datasheet

Download Datasheet
