UJ32-C-H-G-MSMT-1-P24-TR

UJ32-C-H-G-MSMT-1-P24-TR

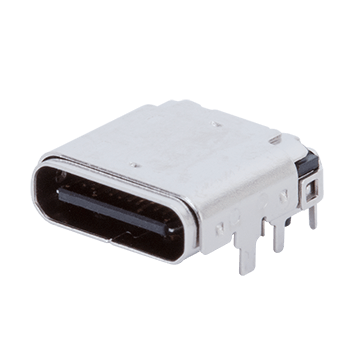

USB 3.2 Type C Connector, Horizontal, Mid-Mount, SMT, 24 Pins

The UJ32-C-H-G-MSMT-1-P24-TR is a high-performance USB 3.2 Type C connector from SAME SKY. Supreme Components International is an authorised distributor, ensuring you receive genuine components. This connector is designed for horizontal, mid-mount placement on PCBs, utilizing surface mount technology (SMT) for efficient assembly. Featuring 24 pins, it supports the USB 3.2 standard, enabling fast data transfer rates and power delivery capabilities. The connector is packaged on tape and reel, making it suitable for automated pick-and-place equipment in high-volume manufacturing environments. This robust and reliable connector is ideal for a wide range of applications requiring USB Type C connectivity.

Product Categories

Interconnect USB Connectors

Specifications

Parameter Value
Product USB Type-C
Durability 10000 Cycles
Usb Version USB 3.2
Center Height 2.75 Millimeters
Mounting Type Surface Mount Technology
Number Of Pins 24 Pins
Shell Material Stainless Steel
Contact Material Copper Alloy
Housing Material Liquid Crystal Polymer UL94V-0
Plating Solder Area Tin
Mounting Orientation Horizontal
Plating Contact Area Gold Flash
Operating Temperature -25 Degrees Celsius to +85 Degrees Celsius

Ordering Information

Parameter Value
Mpq 1500
Packaging Type TAPE_AND_REEL

Datasheet

Download Datasheet
