UJ32-C-H-G-DSMT-1-P24-TR

UJ32-C-H-G-DSMT-1-P24-TR

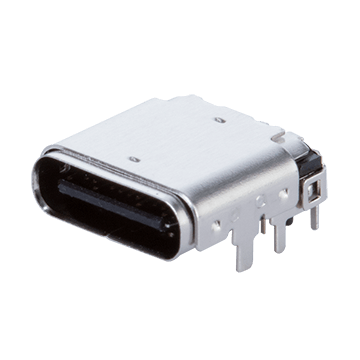

USB 3.2 Type C Connector, Horizontal, Mid-Mount, Test Points

The UJ32-C-H-G-DSMT-1-P24-TR USB 3.2 Type C connector, manufactured by SAME SKY, is a high-performance solution for modern connectivity needs. Supreme Components International is an authorised distributor of SAME SKY products. This connector features a horizontal orientation and a mid-mount design, optimizing space utilization on your PCB. The inclusion of test points simplifies debugging and testing during development and manufacturing. Compliant with USB 3.2 specifications, it supports high-speed data transfer rates, making it suitable for applications requiring fast and reliable communication. Its robust construction ensures durability and longevity, even in demanding environments. This connector is ideal for a wide range of applications, including consumer electronics, industrial equipment, and automotive systems. Benefit from its ease of integration and superior performance.

Product Categories

Interconnect USB Connectors

Specifications

Parameter Value
Gender Receptacle
Orientation Horizontal
Usbstandard USB 3.2
Mountingtype Surface Mount Device or Surface Mount Technology
Connectortype Type-C
Currentrating 5 Amperes
Numberofports 1
Shellmaterial Stainless Steel
Voltagerating 20 Volts
Housingmaterial Thermoplastic
Numberofcontacts 24
Operatingtemperature -40 Degrees Celsius to +85 Degrees Celsius

Ordering Information

Parameter Value
Mpq 100
Packaging Type TAPE_AND_REEL

Datasheet

Download Datasheet
