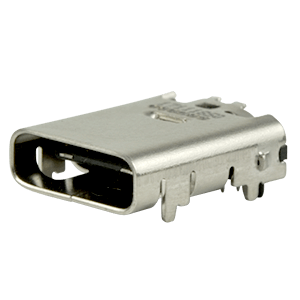

UJ31-CH-31-SMT-TR

USB Type C Connector, USB 3.1, SMT, Tape and Reel

The UJ31-CH-31-SMT-TR is a high-performance USB Type-C connector from SAME SKY. Supreme Components International, an authorised distributor, provides this connector, designed for USB 3.1 applications. This surface mount (SMT) connector is supplied on tape and reel, facilitating efficient automated assembly processes. The USB Type-C interface offers a reversible connection, simplifying user experience and improving device durability. It supports high-speed data transfer rates and increased power delivery capabilities, making it suitable for a wide range of applications, including smartphones, laptops, and other portable devices. Its compact design and robust construction ensure reliable performance in demanding environments. Choose Supreme Components International for genuine SAME SKY components and expert support.

Product Categories

Interconnect USB Connectors

Specifications

Parameter Value
Durability 10000 Mating Cycles
Usb Version USB 3.1
Mating Force 5 Newtons to 20 Newtons
Product Type USB Type-C
Mounting Type Surface Mount Technology
Shell Material Stainless Steel
Unmating Force 8 Newtons to 20 Newtons
Contact Material Copper Alloy
Housing Material High Temperature Thermoplastic UL94V-0
Contact Resistance 40 Milliohms Maximum
Solder Area Plating Tin Plating
Contact Area Plating Gold Flash
Insulation Resistance 100 Megaohms Minimum
Operating Temperature -25 Degrees Celsius to +85 Degrees Celsius
Shell To Ground Resistance 50 Milliohms Maximum
Dielectric Withstanding Voltage 100 Volts AC for 1 Minute

Ordering Information

Parameter Value
Mpq 2500
Packaging Type TAPE_AND_REEL
