UJ31-CH-3-MSMT-TR-67

UJ31-CH-3-MSMT-TR-67

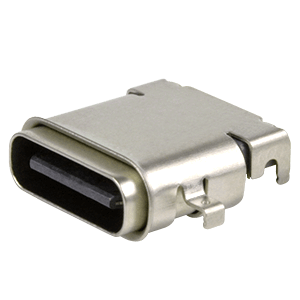

USB 3.1 Type C Connector, Mid-Mount, Tape & Reel

Supreme Components International, an authorised distributor, presents the UJ31-CH-3-MSMT-TR-67, a high-quality USB 3.1 Type C connector from SAME SKY. This connector features a mid-mount design, optimizing space utilization on your PCB. Packaged on tape and reel for automated assembly, it simplifies manufacturing processes. The USB 3.1 Type C standard supports high-speed data transfer rates and increased power delivery capabilities, making it suitable for a wide range of applications, including smartphones, laptops, and other portable devices. Ensure reliable connectivity with this durable and efficient connector from SAME SKY, available through Supreme Components International.

Product Categories

Interconnect USB Connectors

Specifications

Parameter Value
Gender Female
Durability 10000 Cycles
Usbversion USB 3.1
Orientation Horizontal
Producttype USB Type C
Mountingtype Surface Mount Technology
Shellplating Nickel Plated
Currentrating 5 Amperes
Numberofports 1 Port
Shellmaterial Stainless Steel
Voltagerating 20 Volts DC
Contactplating Gold Plated
Contactmaterial Copper Alloy
Housingmaterial High Temperature Thermoplastic
Shieldresistance 50 Milliohms Maximum
Contactresistance 40 Milliohms Maximum
Insulatorresistance 100 Megaohms Minimum
Operatingtemperature -25 Degrees Celsius to +85 Degrees Celsius
Dielectricwithstandingvoltage 100 Volts AC

Ordering Information

Parameter Value
Mpq 1500
Packaging Type TAPE_AND_REEL
