UJ20-C-V-G-SMT-P16-TR

UJ20-C-V-G-SMT-P16-TR

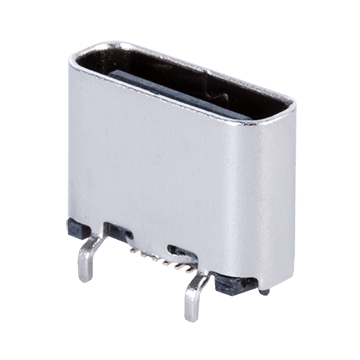

USB 2.0 Type C Connector, Vertical Mount, SMT, Tape & Reel

The UJ20-C-V-G-SMT-P16-TR is a high-quality USB 2.0 Type C connector manufactured by SAME SKY (formerly CUI Devices). This connector features a vertical orientation and is specifically designed for surface mount technology (SMT) assembly, making it suitable for automated production processes. Packaged in tape and reel, it's ready for pick-and-place machines. The Type C connector offers a reversible design for easy insertion. Supreme Components International is an authorised distributor of SAME SKY products, ensuring you receive genuine components with full traceability. This connector is ideal for applications requiring a compact and reliable USB connection, such as mobile devices, embedded systems, and portable electronics. Its robust design guarantees long-term performance and durability.

Product Categories

Interconnect USB Connectors

Specifications

Parameter Value
Product USB Connectors
Shielded Yes
Usb Type Type C
Durability 10000 Cycles
Orientation Vertical
Usb Version USB 2.0
Mounting Type Surface Mount Technology
Current Rating 3 Amperes
Shell Material Stainless Steel
Voltage Rating 30 Volts DC
Contact Material Copper Alloy
Housing Material High Temperature Thermoplastic (UL94V-0)
Operating Temperature -25 to +85 Degrees Celsius

Ordering Information

Parameter Value
Mpq 1500
Packaging Type TAPE_AND_REEL

Datasheet

Download Datasheet
