UJ20-C-R-G-TH-1-P14-TR

SAME SKY (formerly CUI Devices) Logo
Manufacturer Part Number (MPN) UJ20-C-R-G-TH-1-P14-TR
Manufacturer SAME SKY (formerly CUI Devices)

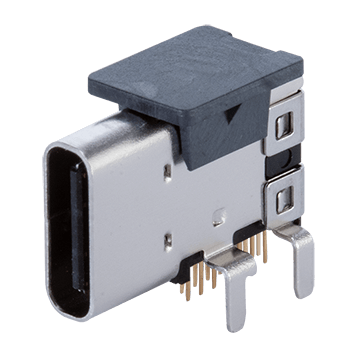

Short Description USB 2.0 Type C Connector, Right Angle, Through Hole
Datasheet 📄 Datasheet

Supreme Components is an authorized distributor of SAME SKY (formerly CUI Devices). We do not carry stock of this item but can quote upon request. Submit your request using the form.

Product Attributes

TYPE
DESCRIPTION
Product
USB Connectors
Usb Type
Type C
Shielding
Yes
Durability
10000 Mating Cycles
Orientation
Right Angle
Usb Version
USB 2.0
Housing Color
Black
Mounting Type
Through Hole
Number Of Pins
14 Pins
Contact Plating
Gold
Number Of Ports
1 Port
Contact Material
Copper Alloy
Housing Material
High Temperature Thermoplastic
Insulator Resistance
100 Megaohms Minimum
Operating Temperature
-40 to +85 Degrees Celsius

Ordering Information

Parameter
Value
Mpq
1000
Packaging Type
TAPE_AND_REEL

Full Description

The UJ20-C-R-G-TH-1-P14-TR USB 2.0 Type C connector, manufactured by SAME SKY, is a versatile solution for modern electronic devices. Supreme Components International is an authorised distributor of SAME SKY components. This connector features a right-angle orientation and through-hole mounting for secure and stable integration onto PCBs. With 14 pins, it supports USB 2.0 data transfer rates and power delivery. The Type C interface offers a reversible connection, enhancing user convenience. Packaged in tape and reel, this connector is designed for efficient pick-and-place assembly in high-volume manufacturing environments. Its robust construction ensures reliable performance in demanding applications. Ideal for smartphones, tablets, laptops, and other portable devices.
