UJ20-C-H-G-SMT-5-P16-TR

UJ20-C-H-G-SMT-5-P16-TR

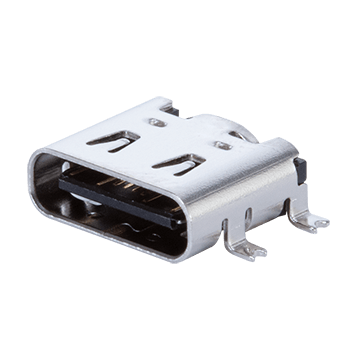

USB 2.0 Type C Connector, Horizontal, SMT

Supreme Components International, an authorised distributor, presents the UJ20-C-H-G-SMT-5-P16-TR, a high-quality USB 2.0 Type C connector manufactured by SAME SKY (formerly CUI Devices). This connector features a horizontal orientation and is designed for surface-mount technology (SMT), making it suitable for modern, space-constrained applications. With a 5A current rating and a 16-pin configuration, it provides robust and reliable connectivity. The tape and reel packaging facilitates efficient automated assembly processes. This USB Type C connector is ideal for a wide range of devices, including smartphones, tablets, laptops, and other portable electronics. Its durable construction and adherence to USB 2.0 standards ensure compatibility and long-lasting performance.

Product Categories

Interconnect USB Connectors

Specifications

Parameter Value
Product USB Connectors
Shielding Yes
Durability 10000 Cycles
Orientation Horizontal
Usb Version USB 2.0
Numberofpins 16 Pins
Mounting Type Surface Mount Technology
Connector Type Type C
Current Rating 5 Amperes
Shell Material Stainless Steel
Contact Material Copper Alloy
Housing Material High Temperature Thermoplastic (UL94V-0)
Operating Temperature -25 to +85 Degrees Celsius

Ordering Information

Parameter Value
Mpq 1500
Packaging Type TAPE_AND_REEL

Datasheet

Download Datasheet
