UJ20-C-H-G-SMT-2-P16-TR

SAME SKY (formerly CUI Devices) Logo
Manufacturer Part Number (MPN) UJ20-C-H-G-SMT-2-P16-TR
Manufacturer SAME SKY (formerly CUI Devices)

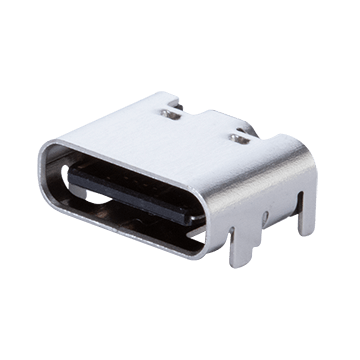

Short Description USB 2.0 Type C Connector, Horizontal, SMT
Datasheet 📄 Datasheet

Supreme Components is an authorized distributor of SAME SKY (formerly CUI Devices). We do not carry stock of this item but can quote upon request. Submit your request using the form.

Product Attributes

TYPE
DESCRIPTION
Durability
10000 Cycles
Usbversion
USB 2.0
Orientation
Horizontal
Producttype
USB Type C
Mountingtype
Surface Mount Technology
Numberofpins
16
Shellplating
Nickel Plated
Currentrating
1.25 Amperes
Shellmaterial
Stainless Steel
Voltagerating
30 Volts AC
Contactplating
Gold Plated
Contactmaterial
Copper Alloy
Housingmaterial
High Temperature Thermoplastic UL94V-0
Contactresistance
40 Milliohms Maximum
Insulationresistance
100 Megaohms Minimum
Operatingtemperature
-25 Degrees Celsius to +85 Degrees Celsius
Dielectricwithstandingvoltage
100 Volts AC

Ordering Information

Parameter
Value
Mpq
2500
Packaging Type
TAPE_AND_REEL

Full Description

The UJ20-C-H-G-SMT-2-P16-TR USB 2.0 Type-C connector, manufactured by SAME SKY, is a versatile solution for modern electronic devices. Supreme Components International is an authorised distributor of SAME SKY products. This horizontal, surface-mount technology (SMT) connector is designed for efficient and reliable data transfer and power delivery. Featuring 16 pins, it ensures a secure and stable connection. The Type-C interface offers a reversible design for user convenience. Packaged on tape and reel, this connector is suitable for automated assembly processes, streamlining manufacturing. Its compact design makes it ideal for space-constrained applications. Trust Supreme Components International for genuine SAME SKY components.
