UJ20-C-H-G-MSMT-P16-TR-67

UJ20-C-H-G-MSMT-P16-TR-67

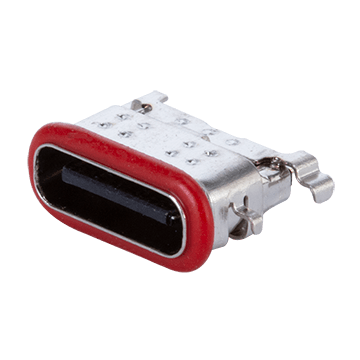

USB 2.0 Type C Connector, Horizontal, Mid-Mount, SMT

Supreme Components International, an authorised distributor, presents the UJ20-C-H-G-MSMT-P16-TR-67, a high-quality USB 2.0 Type C connector manufactured by SAME SKY (formerly CUI Devices). This connector features a horizontal orientation and a mid-mount design, optimized for space-constrained applications. Its surface mount technology (SMT) compatibility ensures efficient and reliable assembly. The tape and reel packaging facilitates automated pick-and-place processes, reducing manufacturing costs and improving throughput. This robust connector is suitable for a wide range of applications, including mobile devices, consumer electronics, and industrial equipment. Benefit from SAME SKY's quality and Supreme Components International's reliable distribution.

Product Categories

Interconnect USB Connectors

Specifications

Parameter Value
Mid Mount Yes
Shielding Yes
Durability 10000 Cycles
Usb Version 2.0
Product Type USB Connectors
Mounting Type Surface Mount Technology
Plating Shell Nickel
Connector Type Type C
Current Rating 3 Amperes
Shell Material Stainless Steel
Voltage Rating 30 Volts DC
Number Of Ports 1 Port
Plating Contact Gold
Contact Material Copper Alloy
Housing Material High Temperature Thermoplastic
Mounting Orientation Horizontal
Operating Temperature -40 to +85 Degrees Celsius

Ordering Information

Parameter Value
Mpq 67
Packaging Type TAPE_AND_REEL

Datasheet

Download Datasheet
