UJ20-C-H-G-MSMT-4-P16-TR

SAME SKY (formerly CUI Devices) Logo
Manufacturer Part Number (MPN) UJ20-C-H-G-MSMT-4-P16-TR
Manufacturer SAME SKY (formerly CUI Devices)

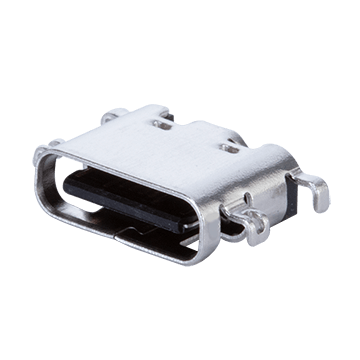

Short Description USB 2.0 Type C Connector, Horizontal, Mid-Mount, SMT, 16 Pins
Datasheet 📄 Datasheet

Supreme Components is an authorized distributor of SAME SKY (formerly CUI Devices). We do not carry stock of this item but can quote upon request. Submit your request using the form.

Product Attributes

TYPE
DESCRIPTION
Product
USB 2.0 Type-C
Durability
10,000 Cycles
Mating Type
Type C
Usb Version
USB 2.0
Center Height
Mid-Mount
Housing Color
Black
Shell Plating
Nickel Plating
Mounting Style
Surface Mount Technology
Number Of Pins
16
Shell Material
Stainless Steel
Contact Plating
Gold Plating
Contact Material
Copper Alloy
Housing Material
High Temperature Thermoplastic
Mounting Orientation
Horizontal
Operating Temperature
-40 Degrees Celsius to +85 Degrees Celsius

Ordering Information

Parameter
Value
Mpq
2500
Packaging Type
TAPE_AND_REEL

Full Description

The UJ20-C-H-G-MSMT-4-P16-TR is a high-quality USB 2.0 Type-C connector from SAME SKY, available through Supreme Components International, an authorised distributor. This connector is designed for horizontal, mid-mount placement on PCBs, utilizing surface mount technology (SMT) for efficient assembly. Its Type-C configuration offers a reversible connection, enhancing user convenience. The connector features 16 pins, ensuring robust signal and power transmission. Packaged in tape and reel, it's optimized for automated pick-and-place processes in high-volume manufacturing. This connector is suitable for a wide range of applications, including smartphones, tablets, laptops, and other portable electronic devices requiring a reliable and compact USB interface.
