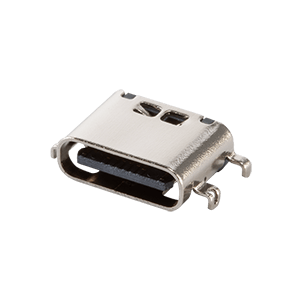

UJ20-C-H-C-MSMT-TR

USB 2.0 Type C Connector, Horizontal, Mid-Mount

Supreme Components International, an authorised distributor of SAME SKY (formerly CUI Devices), presents the UJ20-C-H-C-MSMT-TR, a high-quality USB 2.0 Type C connector. This connector features a horizontal orientation and a mid-mount design, optimizing space utilization on your PCB. Packaged on tape and reel for automated assembly, it's perfect for high-volume manufacturing. The UJ20-C-H-C-MSMT-TR ensures reliable data transfer and power delivery, meeting the demands of modern electronic devices. Its robust construction guarantees durability and long-term performance. Choose this connector for seamless integration and dependable USB 2.0 connectivity in your next project. Benefit from SAME SKY's quality and SCI's reliable distribution.

Product Categories

Interconnect USB Connectors

Specifications

Parameter Value
Product USB Connectors
Shielding Yes
Durability 10000 Cycles
Orientation Horizontal (Right Angle)
Usb Version USB 2.0
Mounting Type Surface Mount Technology (SMT)
Connector Type Type C
Current Rating 3 Amperes
Voltage Rating 30 Volts
Contact Plating Gold
Number Of Ports 1 Port
Contact Material Copper Alloy
Housing Material Thermoplastic
Operating Temperature -40 to +85 Degrees Celsius

Ordering Information

Parameter Value
Mpq 1500
Packaging Type TAPE_AND_REEL

Datasheet

Download Datasheet
