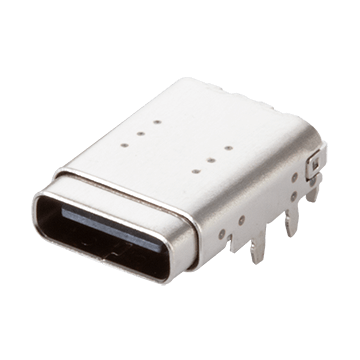

UJ20-C-H-C-1-SMT-TR

USB 2.0 Type C Connector, Horizontal, SMT

The UJ20-C-H-C-1-SMT-TR USB 2.0 Type C connector, manufactured by SAME SKY, offers a reliable and compact solution for modern electronic devices. Designed for horizontal surface mount (SMT) installation, this connector is supplied in tape and reel packaging, facilitating efficient automated assembly processes. Its Type C interface ensures compatibility with a wide range of devices, supporting both data transfer and power delivery. Supreme Components International is an authorised distributor of SAME SKY components, guaranteeing the authenticity and quality of this product. This connector is suitable for applications requiring a robust and space-saving USB connection, such as smartphones, tablets, and other portable electronics. The horizontal orientation simplifies board layout and reduces overall device thickness. Benefit from a secure and efficient connection with this high-quality USB connector.

Product Categories

Interconnect USB Connectors

Specifications

Parameter Value
Durability 10000 Cycles
Usbversion USB 2.0
Orientation Horizontal
Producttype USB Type C
Mountingtype Surface Mount Technology
Numberofports 1
Shellmaterial Stainless Steel
Contactmaterial Copper Alloy
Housingmaterial High Temperature Thermoplastic UL94V-0
Operatingtemperature -25 Degrees Celsius to +85 Degrees Celsius

Ordering Information

Parameter Value
Mpq 2500
Packaging Type TAPE_AND_REEL

Datasheet

Download Datasheet

Contact Us for Design-in or Quote Support Today
