uGuard2804

uGuard2804

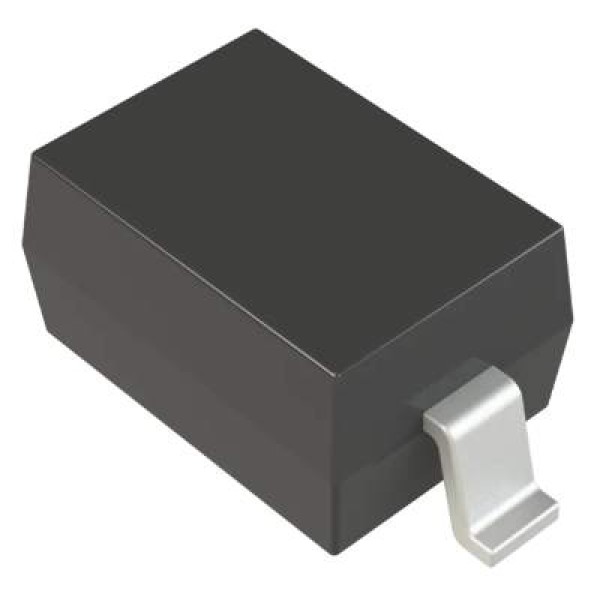

The uGuard2804 is a high-performance, unidirectional TVS Diode manufactured by SMC Diodes. Supreme Components International is an authorised distributor of SMC Diodes components. This TVS diode is specifically designed to protect sensitive electronic equipment from voltage transients induced by lightning, inductive load switching, and electrostatic discharge (ESD). Featuring a 28V standoff voltage, the uGuard2804 effectively clamps transient voltages to safe levels, preventing damage to downstream components. Its DO-214AA (SMB) package offers excellent power dissipation and thermal performance. This diode is ideal for use in telecommunications, industrial control, and consumer electronics applications where reliable overvoltage protection is critical. Choose the uGuard2804 for superior circuit protection and peace of mind.

Specifications

Parameter Value
Package Type DO-214AA (SMB)
Polarity Type Unidirectional
Voltage Rating 28 Volts
Clamping Voltage 45.7 Volts
Peak Pulse Power 400 Watts
Breakdown Voltage 31.1 Volts to 34.4 Volts
Reverse Standoff Voltage 28 Volts

Ordering Information

Parameter Value
Mpq 3000
Packaging Type TAPE_AND_REEL

Looking for more information about uGuard2804?

Download Datasheet
