Reference Only

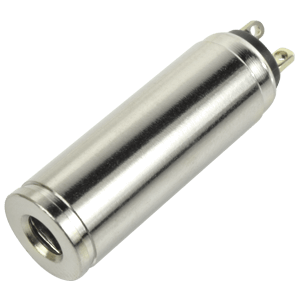

SR-3540-01
audio jack, 3.5 mm, straight, 4 conductor, om, 0 switches
Manufacturer:
Same Sky (formerly CUI Devices)Category:
Connectors
Sub Category:
Circular Connectors
Product Description
audio jack, 3.5 mm, straight, 4 conductor, om, 0 switches
Technical Specifications
| Attribute | Description |
|---|---|
| Audio Standard (mm) | 3.5 |
| Connector Type | Receptacle |
| Current Rating (A) | 1 |
| Internal Switch(es) | 0 |
| Length (mm) | 25.8 |
| Mounting Style | Cable - Overmold |
| Number of Conductors | 4 |
| Number of Ports | 1 |
| Orientation | Vertical |
| Shielding | No |
| Voltage Rating (Vdc) | 12 |
| Width (mm) | 7.8 |
