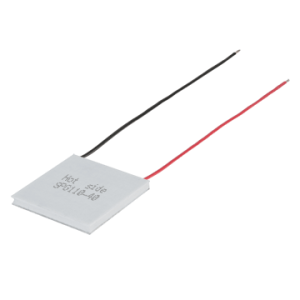

SPG110-40
TEG, 6.3 V / 1.75 A output, 40 x 40 x 3.83 mm, wire leads
Product Category
Thermal Management
Product Sub category
OTHER
PRODUCT DETAILS
Product Description
TEG, 6.3 V / 1.75 A output, 40 x 40 x 3.83 mm, wire leads
Product Tags
Technical Specifications
| Ac resistance (@27 °c /1000 hz) (ohms) | 1.4~2.0 |
|---|---|
| Dimensions lxwxh (in) | 1.58 x 1.58 x 0.15 |
| Dimensions lxwxh (mm) | 40 x 40 x 3.83 |
| Heat flow across module (w) | 192 |
| Heat flow density (w/cm²) | 12 |
| Height (mm) | 3.83 |
| Length (mm) | 40 |
| Matched load output current (a) | 1.75 |
| Matched load output power (w) | 11 |
| Matched load output voltage (v) | 6.3 |
| Matched load resistance (ohms) | 3.6 |
| Open circuit voltage (vdc) | 12.6 |
| Width (mm) | 40 |
Ships in:
1 day
