Reference Only

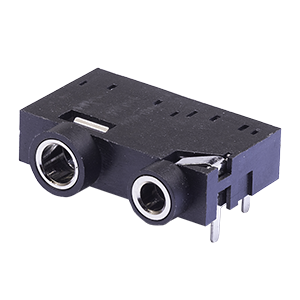

SJD1-3201-54
audio jack, 2.5/3.5 mm , rt, dual stereo, through hole, 3 switches
Manufacturer:
Same Sky (formerly CUI Devices)Category:
Connectors
Sub Category:
Circular Connectors
Product Description
audio jack, 2.5/3.5 mm , rt, dual stereo, through hole, 3 switches
Technical Specifications
| Attribute | Description |
|---|---|
| Audio Standard (mm) | 2.5 |
| Color | 3.5 |
| Connector Type | Black |
| Current Rating (A) | Jack |
| Height (mm) | 1 |
| Internal Switch(es) | 6 |
| Length (mm) | 3 |
| Mounting Style | 14.1 |
| Number of Conductors | Through Hole |
| Number of Ports | 3 |
| Orientation | 2 |
| Shielding | Horizontal |
| Voltage Rating (Vdc) | No |
| Width (mm) | 12 |
