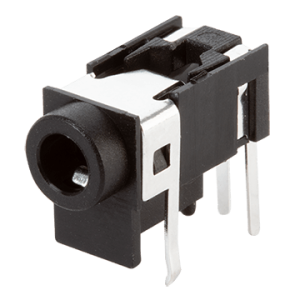

SJ3-35074A
Audio Jack, 3.5mm, Through Hole, 4 Conductors, 0 Switches
Manufacturer:
Same Sky (formerly CUI Devices)Category:
Connectors
Sub Category:
Circular Connectors
Product Description
Audio Jack, 3.5mm, Through Hole, 4 Conductors, 0 Switches
Technical Specifications
| Attribute | Description |
|---|---|
| Audio Standard (mm) | 3.5 |
| Color | Black |
| Connector Type | Jack |
| Current Rating (A) | 1 |
| Dimensions LxWxH (mm) | 15 x 7 x 10 |
| Height (mm) | 10 |
| Internal Switch(es) | 0 |
| Length (mm) | 15 |
| Mounting Style | Through Hole |
| Number of Conductors | 4 |
| Number of Ports | 1 |
| Orientation | Horizontal |
| Shielding | Yes |
| Voltage Rating (Vdc) | 12 |
| Width (mm) | 7 |
