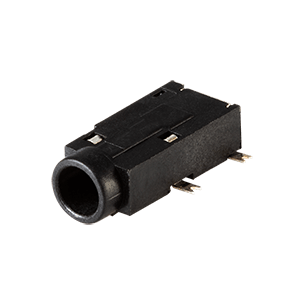

SJ2-35853B-SMT-TR
audio jack, 3.5 mm, rt, 3 conductor, SMT, 1 switches, T&R package
Manufacturer:
Same Sky (formerly CUI Devices)Category:
Connectors
Sub Category:
Circular Connectors
Product Description
audio jack, 3.5 mm, rt, 3 conductor, SMT, 1 switches, T&R package
Technical Specifications
| Attribute | Description |
|---|---|
| Audio Standard (mm) | 3.5 |
| Color | Black |
| Connector Type | Jack |
| Current Rating (A) | 1 |
| Dimensions LxWxH (in) | 0.55 x 0.24 x 0.15 |
| Dimensions LxWxH (mm) | 14 x 6.2 x 3.8 |
| Height (mm) | 3.8 |
| Internal Switch(es) | 1 |
| Length (mm) | 14 |
| Mounting Style | Surface Mount |
| Number of Conductors | 3 |
| Number of Ports | 1 |
| Orientation | Horizontal |
| Series | SJ2-3585X-SMT |
| Shielding | No |
| Voltage Rating (Vdc) | 12 |
| Width (mm) | 6.2 |
