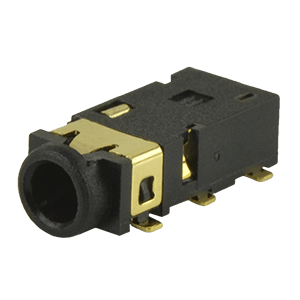

SJ2-25414D-SMT-TR
2.5 mm, Stereo, Right Angle, Surface Mount (SMT), 4 Conductors, 2 Internal Switches, Audio Jack Connector
Product Category
Interconnect
Product Sub category
Audio Connectors
PRODUCT DETAILS
Product Description
2.5 mm, Stereo, Right Angle, Surface Mount (SMT), 4 Conductors, 2 Internal Switches, Audio Jack Connector
Product Tags
Technical Specifications
| Audio standard (mm) | 2.5 |
|---|---|
| Color | Black |
| Connector type | Jack |
| Current rating (a) | 1 |
| Dimensions lxwxh (in) | 0.47 x 0.2 x 0.15 |
| Dimensions lxwxh (mm) | 12 x 5.2 x 3.8 |
| Height (mm) | 3.8 |
| Internal switch(es) | 2 |
| Length (mm) | 12 |
| Mounting style | Surface Mount |
| Number of conductors | 4 |
| Number of ports | 1 |
| Orientation | Horizontal |
| Shielding | No |
| Voltage rating (vdc) | 12 |
| Width (mm) | 5.2 |
