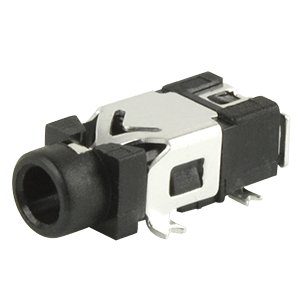

SJ2-25102B-SMT-TR
audio jack, 2.5 mm, rt, 2 conductor, SMT, 1 switches, T&R package
Manufacturer:
Same Sky (formerly CUI Devices)Category:
Connectors
Sub Category:
Circular Connectors
Product Description
audio jack, 2.5 mm, rt, 2 conductor, SMT, 1 switches, T&R package
Technical Specifications
| Attribute | Description |
|---|---|
| Audio Standard (mm) | 2.5 |
| Color | Black |
| Connector Type | Jack |
| Current Rating (A) | 1 |
| Dimensions LxWxH (in) | 0.47 x 0.2 x 0.16 |
| Dimensions LxWxH (mm) | 12 x 5 x 4 |
| Height (mm) | 4.1 |
| Internal Switch(es) | 1 |
| Length (mm) | 12 |
| Mounting Style | Surface Mount |
| Number of Conductors | 2 |
| Number of Ports | 1 |
| Orientation | Horizontal |
| Series | SJ2-2510X-SMT |
| Shielding | No |
| Voltage Rating (Vdc) | 12 |
| Width (mm) | 5 |
