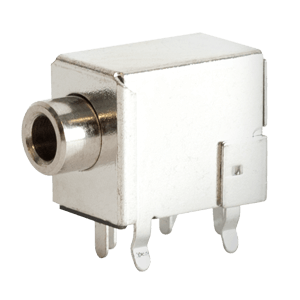

SJ1-3534NS
3.5 mm Stereo Jack, 4 Pin Right-Angle, PCB Mount, Full Shield, Metal Bushing
Product Category
Interconnect
Product Sub category
Audio Connectors
SKU
db319b74a6cd
PRODUCT DETAILS
Product Description
3.5 mm Stereo Jack, 4 Pin Right-Angle, PCB Mount, Full Shield, Metal Bushing
Product Tags
Technical Specifications
| Audio standard (mm) | 3.5 |
|---|---|
| Color | Black |
| Connector type | Jack |
| Current rating (a) | 0.3 |
| Height (mm) | 12.7 |
| Internal switch(es) | 1 |
| Length (mm) | 18.5 |
| Mounting style | Through Hole |
| Number of conductors | 3 |
| Number of ports | 1 |
| Orientation | Horizontal |
| Series | SJ1-353XNS |
| Shielding | Yes |
| Voltage rating (vdc) | 12 |
| Width (mm) | 9.7 |
Ships in:
1 day
