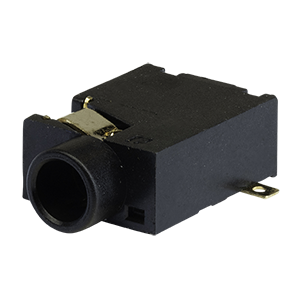

SJ1-3513-SMT-TR

3.5 mm Audio Jack, SMT, Top Entry

The SJ1-3513-SMT-TR is a high-quality 3.5 mm audio jack manufactured by SAME SKY. Designed for surface mount technology (SMT), this top-entry connector offers a convenient and efficient solution for audio connectivity in a wide range of electronic devices. Supreme Components International is an authorised distributor of SAME SKY components, ensuring you receive a genuine and reliable product. This audio jack is perfect for applications requiring a compact and durable connector. Its SMT design simplifies the assembly process, reducing manufacturing costs and improving overall product reliability. The top-entry configuration allows for easy insertion and removal of audio cables. The SJ1-3513-SMT-TR is suitable for use in smartphones, tablets, laptops, and other portable audio devices.

Product Categories

Audio Connectors;Audio Jacks Interconnect

Specifications

Parameter Value
Shielding Yes
Durability 5000 Cycles
Orientation Top Entry
Mountingtype Surface Mount Technology
Contactplating Gold
Contactmaterial Brass
Insulatormaterial Thermoplastic
Numberofpositions 3
Operatingtemperature -25 to +85 Degrees Celsius

Ordering Information

Parameter Value
Mpq 1000
Packaging Type TAPE_AND_REEL

Datasheet

Download Datasheet
