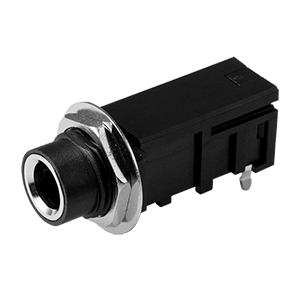

SJ-63053A
6.35 mm, Stereo, Right Angle, Through Hole Mount, 3 Conductors, 0 Internal Switches, Audio Jack Connector
Product Category
Interconnect
Product Sub category
Audio Connectors
PRODUCT DETAILS
Product Description
6.35 mm, Stereo, Right Angle, Through Hole Mount, 3 Conductors, 0 Internal Switches, Audio Jack Connector
Product Tags
Technical Specifications
| Audio standard (mm) | 6.35 |
|---|---|
| Color | Black |
| Connector type | Jack |
| Current rating (a) | 1 |
| Dimensions lxwxh (in) | 1.34 x 0.55 x 0.49 |
| Dimensions lxwxh (mm) | 34 x 14 x 12.5 |
| Height (in) | 0.49 |
| Height (mm) | 12.5 |
| Internal switch(es) | 0 |
| Length (in) | 1.34 |
| Length (mm) | 34 |
| Mounting style | Through Hole |
| Number of conductors | 3 |
| Number of ports | 1 |
| Orientation | Horizontal |
| Shielding | No |
| Voltage rating (vdc) | 12 |
| Width (in) | 0.55 |
| Width (mm) | 14 |
