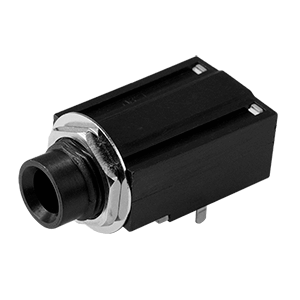

SJ-63043F
audio jack, 6.35 mm, horizontal, 3 conductor, through hole, 2 DPDT switches w/ nut
Manufacturer:
Same Sky (formerly CUI Devices)Category:
Connectors
Sub Category:
Circular Connectors
Product Description
audio jack, 6.35 mm, horizontal, 3 conductor, through hole, 2 DPDT switches w/ nut
Technical Specifications
| Attribute | Description |
|---|---|
| Audio Standard (mm) | 6.35 |
| Color | Black |
| Connector Type | Jack |
| Current Rating (A) | 1 |
| Dimensions LxWxH (in) | 1.4 x 0.71 x 0.47 |
| Dimensions LxWxH (mm) | 35.5 x 18 x 12 |
| Height (in) | 0.47 |
| Height (mm) | 12 |
| Internal Switch(es) | 2 |
| Length (in) | 1.4 |
| Length (mm) | 35.5 |
| Mounting Style | Through Hole |
| Number of Conductors | 3 |
| Number of Ports | 1 |
| Orientation | Horizontal |
| Series | SJ-6304 |
| Shielding | No |
| Voltage Rating (Vdc) | 12 |
| Width (in) | 0.71 |
| Width (mm) | 18 |
