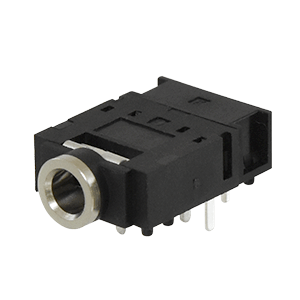

SJ-3566AN
The SJ-3566AN is a high-quality 3.5 mm audio jack from SAME SKY, designed for through-hole mounting. Its right-angle configuration optimizes space utilization on PCBs, while the open-frame design facilitates easy inspection and soldering. This audio jack is suitable for a wide range of audio applications, including headphones, speakers, and audio interfaces. As an authorized distributor of SAME SKY components, Supreme Components International ensures that you receive only genuine, reliable products. The SJ-3566AN offers excellent signal transmission and durable construction, making it a dependable choice for your audio connectivity needs. Benefit from our expert support and fast delivery when you choose Supreme Components International for your electronic component requirements. This robust audio jack is perfect for both prototyping and mass production.
Specifications
| Parameter | Value |
|---|---|
| Shielding | Unshielded |
| Durability | 5000 Cycles |
| Orientation | Right Angle |
| Mounting Type | Through Hole |
| Contact Plating | Gold |
| Contact Material | Brass |
| Insulator Material | Thermoplastic |
| Number of Positions | 3 |
| Operating Temperature | -25 to +85 degrees Celsius |
