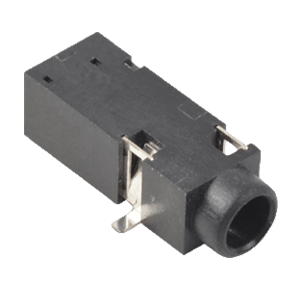

SJ-3524-SMT-TR

3.5 mm Audio Jack, SMT, Top Entry, Shielded

The SJ-3524-SMT-TR is a high-quality 3.5 mm audio jack from SAME SKY, designed for surface mount technology (SMT) applications. This connector features a top entry configuration, simplifying the assembly process. The shielded design minimizes electromagnetic interference, ensuring clear and reliable audio signal transmission. Supreme Components International is an authorised distributor of SAME SKY electronic components, guaranteeing the authenticity and quality of this product. This audio jack is suitable for a wide range of devices, including smartphones, tablets, and audio players. Its compact size and robust construction make it an excellent choice for space-constrained designs. Explore our extensive selection of connectors to find the perfect solution for your project. Benefit from our competitive pricing and fast shipping options.

Product Categories

Audio Connectors;Audio Jacks Interconnect

Specifications

Parameter Value
Shielding Yes
Durability 5000 Cycles
Orientation Top Entry
Mountingtype Surface Mount Technology
Contactmaterial Copper Alloy
Insulatormaterial Thermoplastic
Numberofpositions 4
Operatingtemperature -25 to +85 Degrees Celsius

Ordering Information

Parameter Value
Mpq 1000
Packaging Type TAPE_AND_REEL

Datasheet

Download Datasheet
