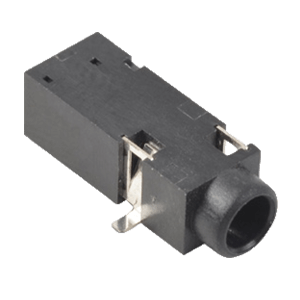

SJ-3524-SMT-TR-BE
audio jack, 3.5 mm, rt, stereo, SMT, 1 switch, blue, T&R package
Manufacturer:
Same Sky (formerly CUI Devices)Category:
Connectors
Sub Category:
Circular Connectors
Product Description
audio jack, 3.5 mm, rt, stereo, SMT, 1 switch, blue, T&R package
Technical Specifications
| Attribute | Description |
|---|---|
| Audio Standard (mm) | 3.5 |
| Color | Blue |
| Connector Type | Jack |
| Current Rating (A) | 1 |
| Height (mm) | 5 |
| Internal Switch(es) | 1 |
| Length (mm) | 17 |
| Mounting Style | Surface Mount |
| Number of Conductors | 3 |
| Number of Ports | 1 |
| Orientation | Horizontal |
| Series | SJ-352X-SMT |
| Shielding | No |
| Voltage Rating (Vdc) | 12 |
| Width (mm) | 6 |
