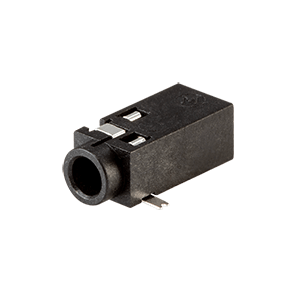

SJ-2504A-SMT-TR
audio jack, 2.5 mm, rt, 4 conductor, SMT, 0 switches, T&R package
Product Category
Connectors
Product Sub category
Circular Connectors
PRODUCT DETAILS
Product Description
audio jack, 2.5 mm, rt, 4 conductor, SMT, 0 switches, T&R package
Product Tags
Technical Specifications
| Audio standard (mm) | 2.5 |
|---|---|
| Color | Black |
| Connector type | Jack |
| Current rating (a) | 1 |
| Dimensions lxwxh (in) | 0.46 x 0.2 x 0.16 |
| Dimensions lxwxh (mm) | 11.7 x 5 x 4.1 |
| Height (mm) | 4.1 |
| Internal switch(es) | 0 |
| Length (mm) | 11.7 |
| Mounting style | Surface Mount |
| Number of conductors | 4 |
| Number of ports | 1 |
| Orientation | Horizontal |
| Shielding | No |
| Voltage rating (vdc) | 12 |
| Width (mm) | 5 |
Ships in:
1 day
