SG541420

Manufacturer Part Number (MPN) SG541420
Manufacturer Celduc Relais

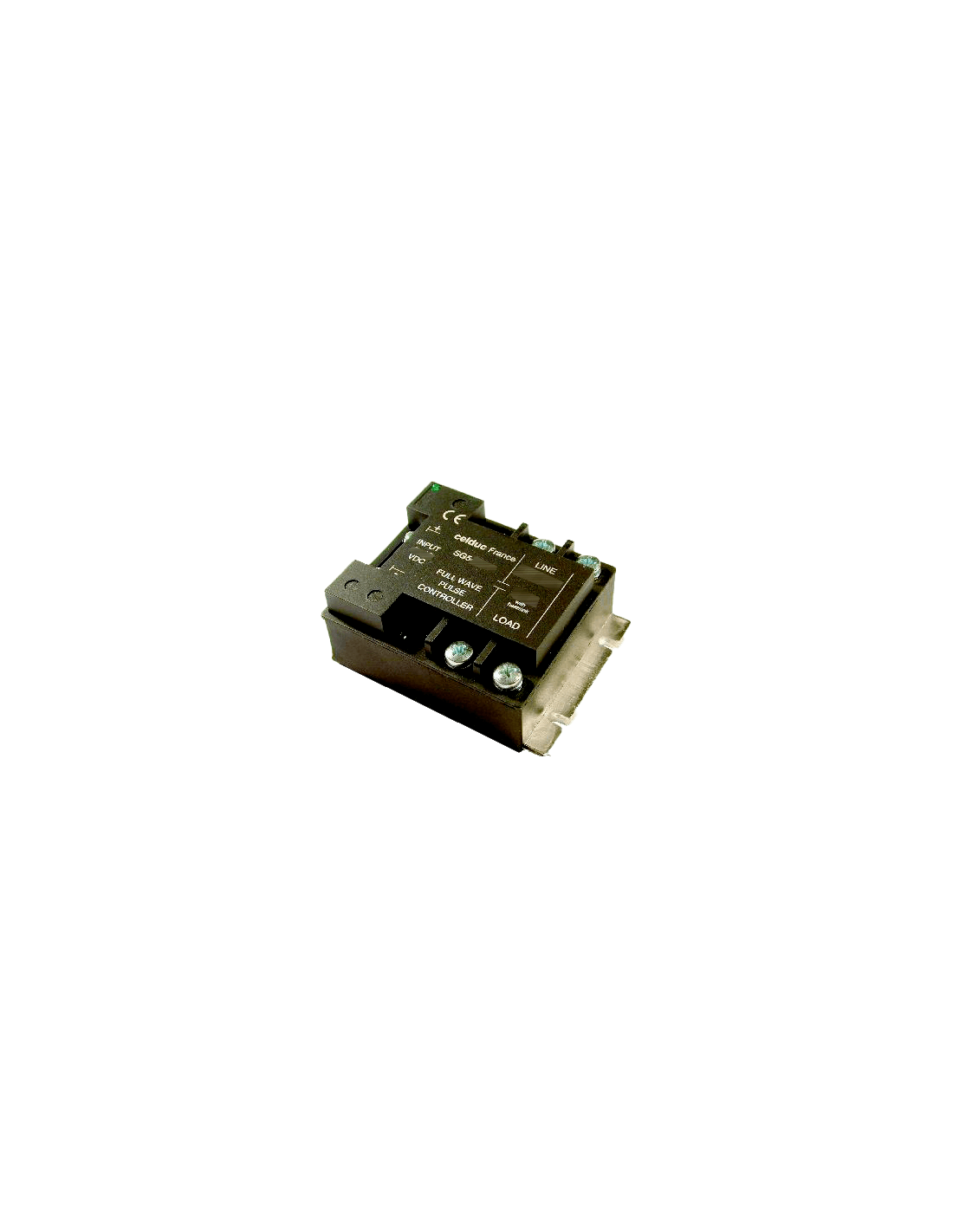

Short Description Celduc Relais SG541420 Solid State Relay, Zero Switch, 24 → 280 Vrms, 14 A, Through Hole
Datasheet 📄 Datasheet

Supreme Components is an authorized distributor of Celduc Relais. We do not carry stock of this item but can quote upon request. Submit your request using the form.

Product Attributes

TYPE
DESCRIPTION
Series
SO5
Load Current
14 Amperes
Input Current
15 Milliamperes
Input Voltage
3 Volts DC to 32 Volts DC
Mounting Type
Through Hole
Output Voltage
24 Volts AC to 280 Volts AC
Switching Mode
Zero Switch
Leakage Current
1.5 Milliamperes
Termination Style
Pin
Control Voltage Dc
3 to 32 Volts DC
Load Voltage Range
24 to 280 Volts RMS
Peak Surge Current
140 Amperes
Dielectric Strength
4000 Volts RMS
Operating Temperature
-30 Degrees Celsius to +80 Degrees Celsius

Full Description

Supreme Components International, an authorised distributor, presents the Celduc Relais SG541420 solid state relay. This PCB mount SSR features zero-switching technology, minimizing electrical noise and extending the lifespan of connected loads. Designed for through-hole mounting, the SG541420 offers a compact and robust solution for controlling AC circuits. It operates within a voltage range of 24 to 280 Vrms and can handle a continuous current of up to 14 A. This SSR is ideal for applications such as lighting control, heating systems, and motor control where reliable and silent switching is crucial. Benefit from Celduc Relais' quality and Supreme Components International's reliable distribution.

Looking for more Celduc Relais connectors? [Click here to browse all Celduc Relais parts]

Supreme Components is an authorized distributor of Celduc Relais. We do not carry stock of this item but can quote upon request. Submit your request using the form.
