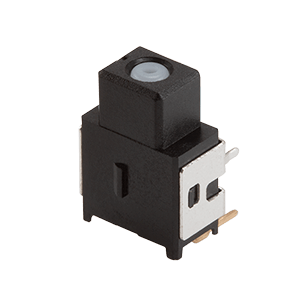

| Manufacturer Part Number (MPN) | MPB02-1C54-R-CAP-BK-D |
| Manufacturer | Same Sky (formerly CUI Devices) |
| Short Description | SPST, Through Hole, 5.4 mm Push, On-(ON), Right Angle Terminal, 2.54 mm Pitch, Black Cap, Push Button Switch |
Request for Quotation
Supreme Components is an authorized distributor of Same Sky (formerly CUI Devices). We do not carry stock of this item but can quote upon request. Submit your request using the form.
Product Attributes
TYPE
DESCRIPTION
Category
Cap Style
Black
Circuit
SPDT
Contact Resistance (mω)
50
Current Rating (ma)
14
Dimensions Lxwxh (in)
0.38 x 0.22 x 0.76
Dimensions Lxwxh (mm)
9.8 x 5.9 x 19.4
Insulation Resistance (mω At 500 Vdc)
500
Mounting Style
Through Hole
Operating Force (gf)
250 ± 100
Operating Temp Max (°c)
80
Operating Temp Min (°c)
-25
Pitch (mm)
2.54
Pole
Single
Push Length (mm)
5.4
Series
MPB02
Switch Function
On-(ON)
Switch Type
Push Button
Termination
Right Angle
Voltage Rating (vdc)
28
Washable
No
Withstanding Voltage (vac For 1 Min)
500
Full Description
SPST, Through Hole, 5.4 mm Push, On-(ON), Right Angle Terminal, 2.54 mm Pitch, Black Cap, Push Button Switch
