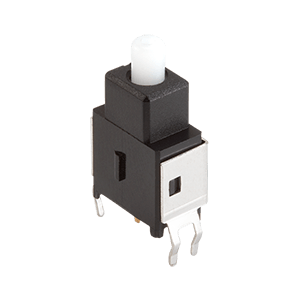

| Manufacturer Part Number (MPN) | MPB01-1C00-SB-D |
| Manufacturer | Same Sky (formerly CUI Devices) |
| Short Description | SPDT, Through Hole, 0 mm Push, On-(ON), Straight with Bracket Terminal, 2.54 mm Pitch, Push Button Switch |
Request for Quotation
Supreme Components is an authorized distributor of Same Sky (formerly CUI Devices). We do not carry stock of this item but can quote upon request. Submit your request using the form.
Product Attributes
TYPE
DESCRIPTION
Category
Cap Style
No Cap
Circuit
SPDT
Contact Resistance (mω)
50
Current Rating (ma)
14
Dimensions Lxwxh (in)
0.39 x 0.23 x 0.52
Dimensions Lxwxh (mm)
9.8 x 5.8 x 13.1
Insulation Resistance (mω At 500 Vdc)
500
Mounting Style
Through Hole
Operating Force (gf)
250 ± 100
Operating Temp Max (°c)
80
Operating Temp Min (°c)
-25
Pitch (mm)
2.54
Pole
Single
Series
MPB01
Switch Function
On-(ON)
Switch Type
Push Button
Termination
Straight with Bracket
Voltage Rating (vdc)
28
Washable
No
Withstanding Voltage (vac For 1 Min)
500
Full Description
SPDT, Through Hole, 0 mm Push, On-(ON), Straight with Bracket Terminal, 2.54 mm Pitch, Push Button Switch
