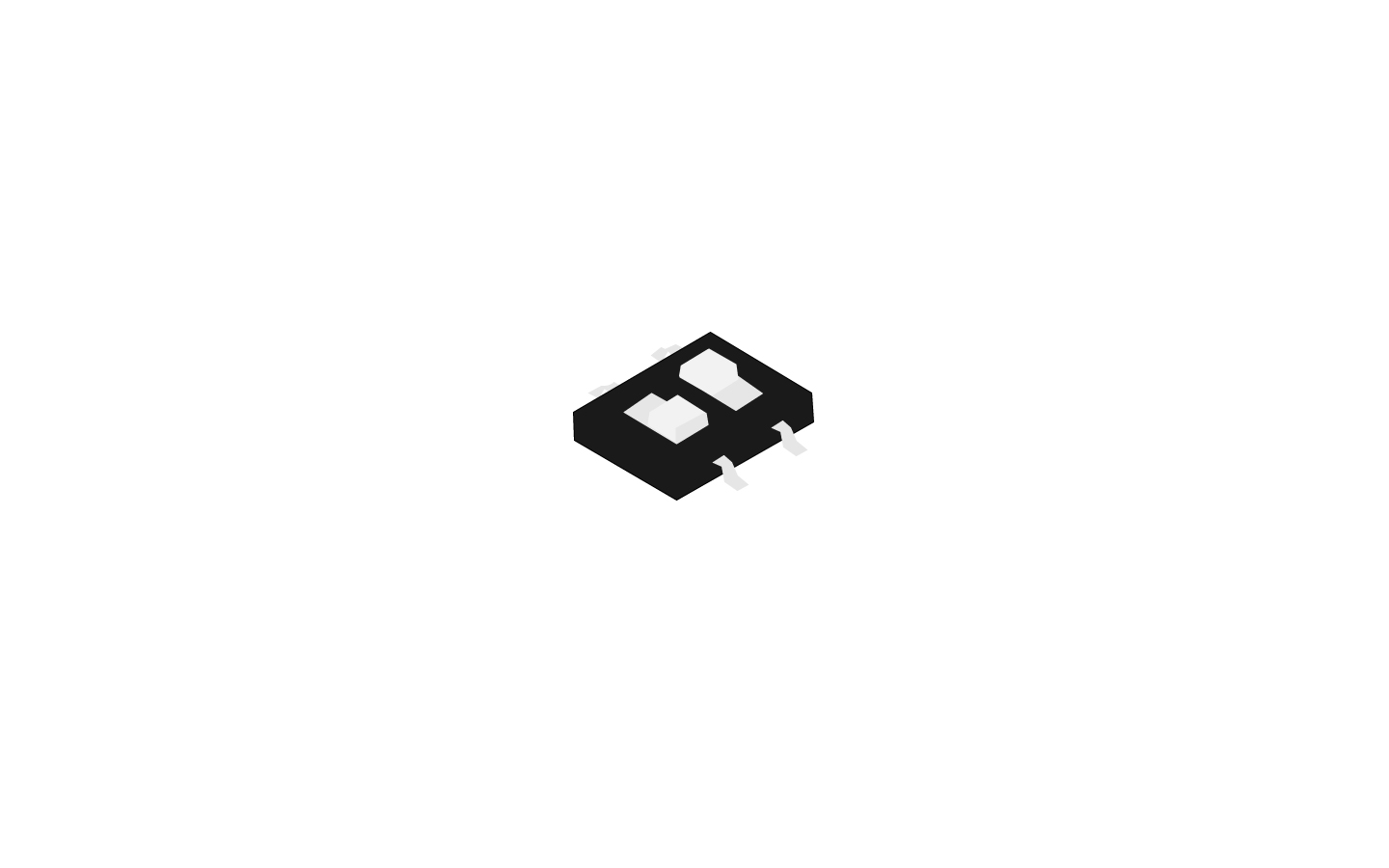

HE12-1A83
Reed Sensor, Form A (SPST), Normally Open, 200VDC, 0.5A, Cable Leads
Datasheet
HE12-1A83 Datasheet
Product Description
Supreme Components International, an authorised distributor, presents the Standex Meder HE12-1A83 Reed Sensor. This sensor is a Form A (SPST) normally open switch, designed for reliable and precise sensing in diverse applications. With a voltage rating of 200VDC and a current rating of 0.5A, the HE12-1A83 offers excellent performance. Its robust construction ensures long-lasting durability. The sensor's cable leads simplify installation and integration into existing systems. Ideal for use in security systems, automotive applications, industrial automation, and more. Trust Standex Meder and Supreme Components International for your sensing needs. Benefit from the quality and reliability of this Reed Sensor.
Technical Specifications
| Attribute | Description |
|---|---|
| Lead_Type | Cable Leads |
| Contact_Form | Single Pole Single Throw (Form A) |
| Operate_Time | 0.4 milliseconds |
| Release_Time | 0.1 milliseconds |
| Maximum_Power | 10 Watts |
| Sensitivity_Range | 10 to 70 AT |
| Contact_Arrangement | Normally Open |
| Operating_Temperature | -40 Degrees Celsius to +125 Degrees Celsius |
| Maximum_Switching_Current | 0.5 Amperes |
| Maximum_Switching_Voltage | 200 Volts DC |
| Minimum_Breakdown_Voltage | 250 Volts DC |
| Minimum_Insulation_Resistance | 10^10 Ohms |
