GLC-ZX-SM-C

Manufacturer Part Number (MPN) GLC-ZX-SM-C
Manufacturer ATGBICS

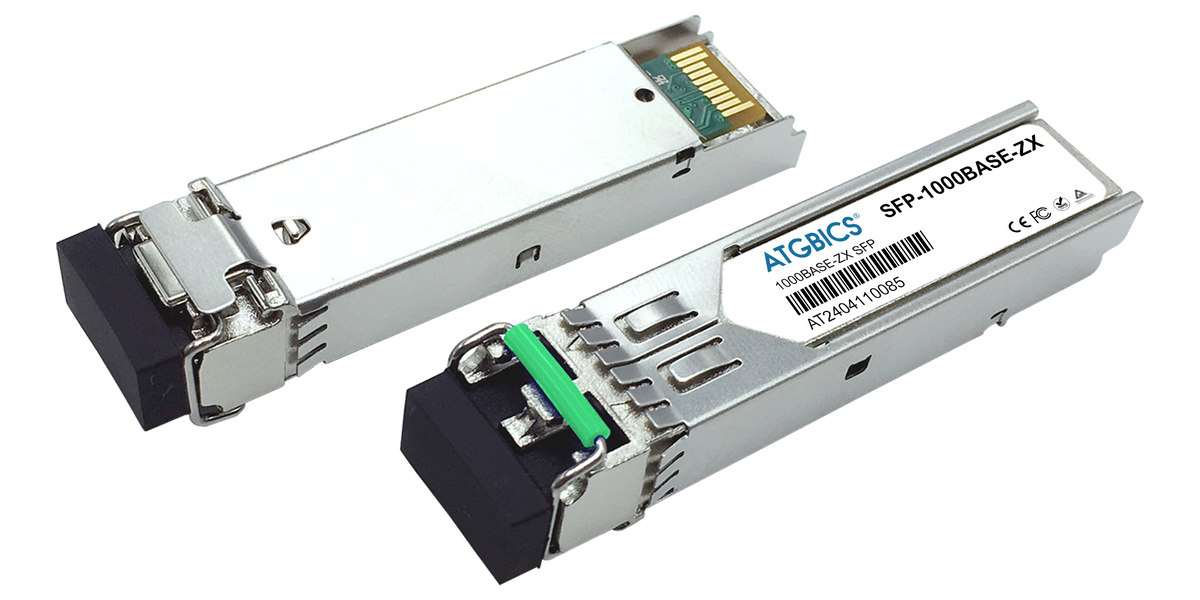

Short Description 1000BASE-ZX SFP transceiver, SMF, 1550nm, up to 70km, with DDM

Supreme Components is an authorized distributor of ATGBICS. We do not carry stock of this item but can quote upon request. Submit your request using the form.

Product Attributes

TYPE
DESCRIPTION
Reach
70 kilometers
Data Rate
1.25 Gigabits per second
Fiber Type
Single Mode Fiber
Wavelength
1550 nanometers
Connector Type
LC
Transmit Power
Between -3 and 2 dBm
Power Consumption
1 Watt (typical)
Receive Sensitivity
-23 dBm
Operating Temperature
0 to 70 degrees Celsius
Digital Diagnostic Monitoring
Yes

Full Description

The Approved Technology GLC-ZX-SM-C is a 1000BASE-ZX SFP transceiver engineered for long-reach single-mode fiber (SMF) connectivity. Operating at a wavelength of 1550nm, this module enables data transmission up to 70km. Equipped with Digital Diagnostic Monitoring (DDM) functionality, it provides real-time monitoring of critical parameters such as optical power, temperature, and voltage, facilitating proactive network management. This SFP transceiver is ideal for applications requiring extended reach and reliable performance. Supreme Components International is an authorized distributor of Approved Technology, guaranteeing authentic components and expert support. Benefit from our extensive inventory and competitive pricing on all your electronic component needs. Trust Supreme Components International for quality and reliability.
