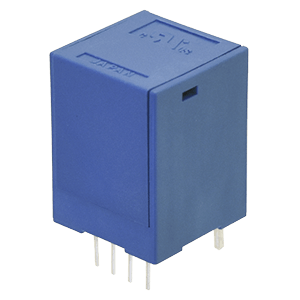

CS2005U
15 mm, 5 Vcc, Bipolar, Through Hole, 20 Rated Current, 0~40 Linearity Range, Open Loop Current Sensor
PRODUCT DETAILS
Product Description
15 mm, 5 Vcc, Bipolar, Through Hole, 20 Rated Current, 0~40 Linearity Range, Open Loop Current Sensor
Product Tags
Technical Specifications
| Accuracy | ±4.2% |
|---|---|
| Current rating (a) | 20 |
| Current supply max (ma) | 25 |
| Dimensions lxwxh (in) | 0.59 x 0.59 x 0.79 |
| Dimensions lxwxh (mm) | 15 x 15 x 20 |
| Frequency (khz) | 0~40 |
| Linearity range (a) | 0~40 |
| Mounting style | Through Hole |
| Number of channels | Single |
| Operating temp max (°c) | 75 |
| Operating temp min (°c) | -10 |
| Output voltage @ +rated current (v) | 2.3 |
| Polarization | Unipolar |
| Response time (µs) | 7 |
| Sensor type | Hall Effect |
| Series | Open Loop |
| Supply voltage (v) | CSXX05U |
