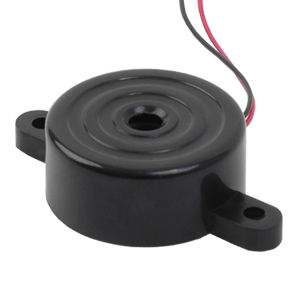

CPE-270
buzzer, 33.7 mm round, 14.5 mm deep, P, 3.5 kHz, 3~28 V, panel mount w/ wires, driving circuit
Product Description
buzzer, 33.7 mm round, 14.5 mm deep, P, 3.5 kHz, 3~28 V, panel mount w/ wires, driving circuit
Technical Specifications
| Attribute | Description |
|---|---|
| Curr. Consumption (mA) | 6 |
| Dimensions LxWxH (in) | 1.33 x 1.33 x 0.57 |
| Dimensions LxWxH (mm) | 33.7 x 33.7 x 14.5 |
| Driving Circuit | Yes |
| Height (mm) | 14.5 |
| Illumination | No |
| Input Type | Vdc |
| IP Rating | No IP Rating |
| Length (mm) | 33.7 |
| Mounting Style | Panel Mount |
| Operating Temp MAX (°C) | 85 |
| Operating Temp MIN (°C) | -30 |
| Rated Frequency (Hz) | 3500 |
| Shape | Round |
| Sound Pressure (dB) | 86 |
| Technology | Piezo |
| Voltage Rating | 12 |
| Washable | No |
| Wave Solderable | No |
| Width (mm) | 33.7 |
