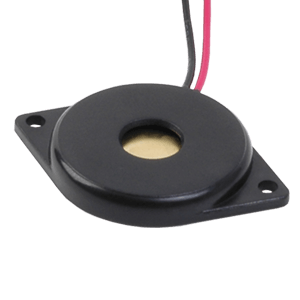

CPE-120
buzzer, 24 mm round, 4 mm deep, P, 6 kHz, 30 V, panel mount w/ wires, no driving circuit
Product Category
Electromechanical
Product Sub category
Buzzers
PRODUCT DETAILS
Product Description
buzzer, 24 mm round, 4 mm deep, P, 6 kHz, 30 V, panel mount w/ wires, no driving circuit
Product Tags
Technical Specifications
| Curr. consumption (ma) | 8 |
|---|---|
| Dimensions lxwxh (in) | 0.94 x 0.94 x 0.16 |
| Dimensions lxwxh (mm) | 24 x 24 x 4 |
| Driving circuit | No |
| Height (mm) | 4 |
| Illumination | No |
| Input type | Vp-p |
| Ip rating | No IP Rating |
| Length (mm) | 24 |
| Mounting style | Panel Mount |
| Operating temp max (°c) | 85 |
| Operating temp min (°c) | -30 |
| Shape | Round |
| Sound pressure (db) | 88 |
| Technology | Piezo |
| Voltage rating | 30 |
| Washable | No |
| Wave solderable | No |
| Width (mm) | 24 |
