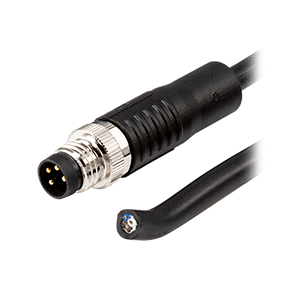

CDM815-04A-01MST-2M-67
Circular Cable Assembly, M8 Male Plug, Blunt Cut Cable, 4 Pins, Vertical, Unshielded, A-Coding, 60 V, 3 A, Screw Copper Alloy, M8 x 1.0, 2 M, 24 AWG, Black, PVC, IP67
Product Category
Interconnect
Product Sub category
Cable Assemblies
PRODUCT DETAILS
Product Description
Circular Cable Assembly, M8 Male Plug, Blunt Cut Cable, 4 Pins, Vertical, Unshielded, A-Coding, 60 V, 3 A, Screw Copper Alloy, M8 x 1.0, 2 M, 24 AWG, Black, PVC, IP67
Product Tags
Technical Specifications
| Cable length (mm) | 2000 |
|---|---|
| Cable style | Round |
| Color | Black |
| Connector 1 | M8 Male Plug |
| Connector 1 coding | A |
| Connector 1 mounting style | Free Hanging |
| Connector 1 mounting thread size | M8 x 1.0 |
| Connector 1 orientation | Straight |
| Connector 1 positions | 4 |
| Connector 2 | Blunt Cut Cable |
| Connector 2 coding | None |
| Connector 2 mounting style | Wire Leads |
| Connector 2 mounting thread size | None |
| Connector 2 orientation | None |
| Contact finish | Gold Plated |
| Current rating (a) | 3 |
| Ip rating | IP67 |
| Jacket material | PVC |
| Operating temp max (°c) | 80 |
| Operating temp min (°c) | -25 |
| Screw material | Copper Alloy |
| Series | CDM815 |
| Shell finish | Brass with Nickel Plating |
| Shell size (mm) | 8 |
| Shielding | No |
| Voltage rating (vac) | 60 |
| Wire gauge (awg) | 24 |
