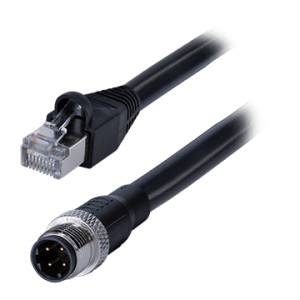

CDM1275-04D-01MST-2M-RJ45-67
Circular Cable Assembly, M12 Male Plug, Cable Assembly, RJ45, 4 Pins, Shielded, D-Coding, 60 V, 1.5 A, Screw Copper Alloy, M12 x 1.0, 2 M, 26 AWG, Black, PUR, IP67
Product Category
Interconnect
Product Sub category
Circular Connectors
PRODUCT DETAILS
Product Description
Circular Cable Assembly, M12 Male Plug, Cable Assembly, RJ45, 4 Pins, Shielded, D-Coding, 60 V, 1.5 A, Screw Copper Alloy, M12 x 1.0, 2 M, 26 AWG, Black, PUR, IP67
Product Tags
Technical Specifications
| Cable length (mm) | 2000 |
|---|---|
| Cable style | Round |
| Color | Black |
| Connector 1 | M12 Male Plug |
| Connector 1 coding | D |
| Connector 1 mounting style | Free Hanging |
| Connector 1 mounting thread size | M12 x 1.0 |
| Connector 1 orientation | Straight |
| Connector 1 positions | 4 |
| Connector 2 | RJ45 |
| Connector 2 coding | D |
| Connector 2 mounting style | Free Hanging |
| Connector 2 mounting thread size | None |
| Connector 2 orientation | Straight |
| Contact finish | Gold Plated |
| Current rating (a) | 1.5 |
| Ip rating | IP67 |
| Jacket material | PUR |
| Operating temp max (°c) | 80 |
| Operating temp min (°c) | -25 |
| Screw material | Copper Alloy |
| Series | CDM1275 |
| Shell finish | Brass with Nickel Plating |
| Shell size (mm) | 12 |
| Shielding | Yes |
| Voltage rating (vac) | 60 |
| Wire gauge (awg) | 26 |
